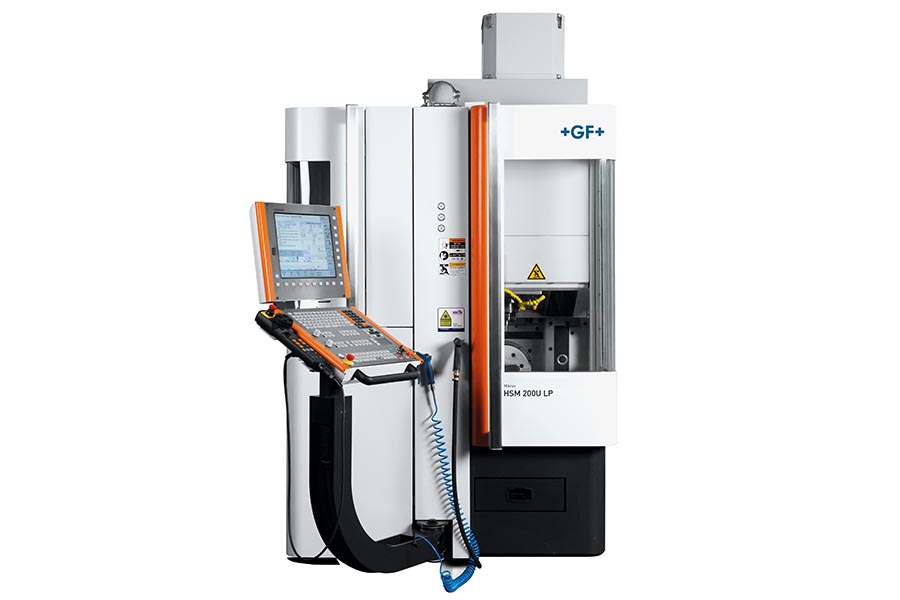

With the Mikron HSM 200U LP, the engineers from GF Machining Solutions have developed an entirely new kind of machine concept. It puts concentrated power in the smallest possible space.
Concentrated power in the smallest possible space
Compact and powerful for our customers in production
Highest precision, best surface finish
Fastest high precision solution on the market
Most compact fully automated precision machining solution
Integrated measuring and control system
Main specifications
Travel X, Y, Z
6.299 x 6.299 x 7.874 in
Swiveling axis tilting axis
+30 /-120 / n x 360 °
Working Spindle (40% ED, S6)
50 000 (HSK-E32) / 8.5 / 3.4 rpm / kW / Nm
Rapid traverse X, Y, Z
42 m / min
Rapid traverse (swiveling, rotating)
150 / 250 rpm
Clamping surface / Max. load
in accordance with pallet / 8 in accordance with pallet / 8 mm / kg
Tool magazine (incl. pallet)
30 / 60 / 140 (HSK-32) piece
Automation pallet size number mm piece
GPS 120/14, 70/20 | Macro Magnum 156/12 Macro 116/14, 70/20, 54/20 ITS 148/12, 115/14, 72/20
