High speed machining center:Mikron HSM

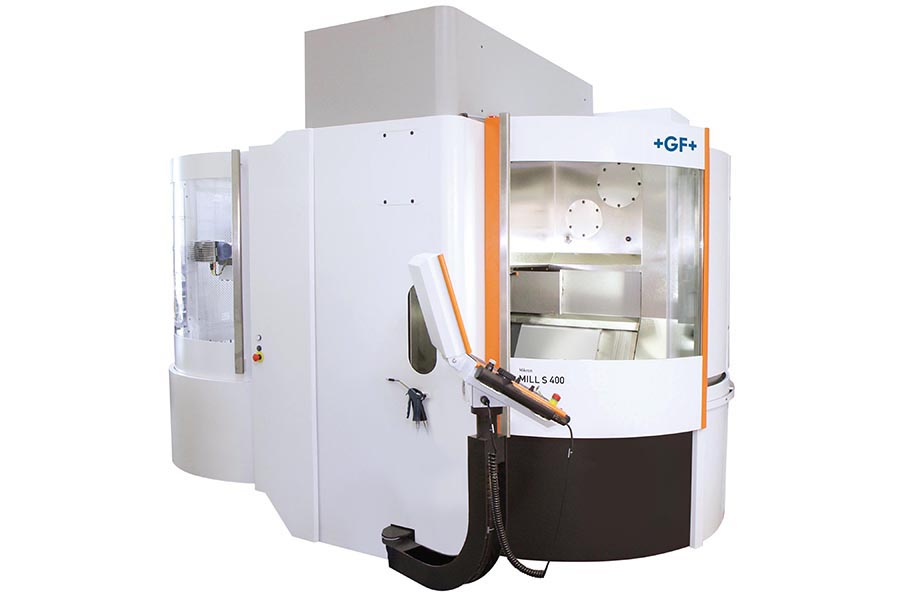

Mikron MILL S 400

The Mikron MILL S series leads precision chip removal into a new era. Precise adherence to the specified tool path even under high feed rates ultimately determines the surface quality of concave and convex surfaces.

The Mikron MILL S series leads precision chip removal into a new era. Precise adherence to the specified tool path even under high feed rates ultimately determines the surface quality of concave and convex surfaces. Hence, for many customers, it is the milling texture – or, to be more exact, the lack of it – on the workpiece that is one of the most important performance characteristics of a Mikron machine.



  • 5-axis pionneer with best concept for mold & die

  • Fastest HSM solution on the market

  • High precision, best surface finish over long machining process

  • Integrated automation and measuring system


Main specifications
Travel X, Y, Z
19.685 x 17.716 x 14.173 in
Swiveling axis tilting axis
- / - °
Working Spindle (40% ED, S6)
42 000 (HSK-E40) / 13.5 / 8.8 rpm / kW / Nm
Rapid traverse X, Y, Z
61 m / min
Rapid traverse (swiveling, rotating)
- / - rpm
Clamping surface / Max. load
in accordance with pallet / 120 mm / kg
Tool magazine (incl. pallet)
20 / 40 (HSK-E32)
18 / 36 / 68 / 168 / 308 (HSK-E40) piece
Automation pallet size number   mm piece
GPS 240/10 | Dynafix 280/7, 350/7
UPC 320/7
Automation - Max. load (incl. pallet)
198.41 lb
Control unit - Heidenhain
iTNC 530 HSCI
