High Efficiency Machine (HEM)

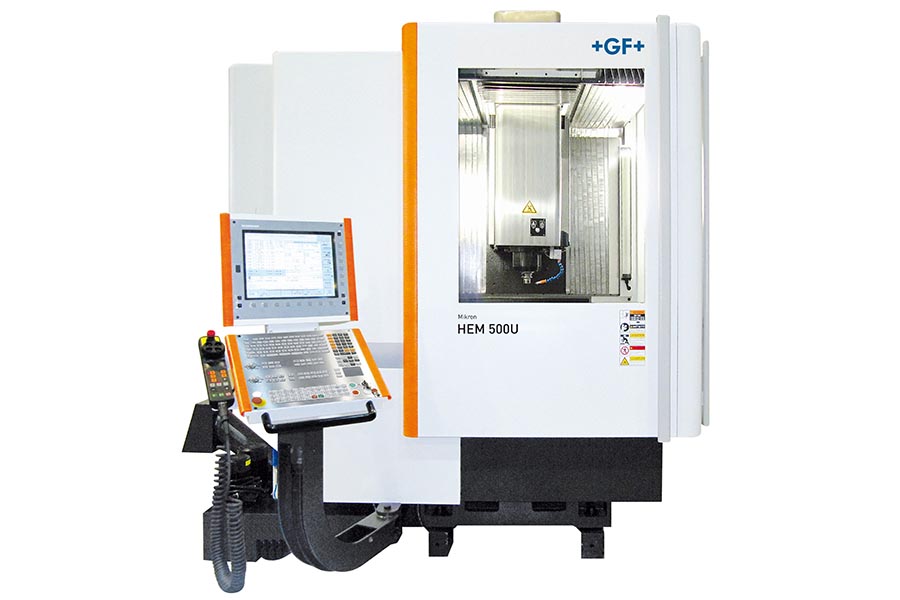

Mikron HEM 500U

Rotary tilting table available as pallet version: System 3R (Dynafix) or Erowa (UPC) Rotary tilting table available as generously dimensioned table top version ø 19.65 in (500 mm) with parallel T-slots)

The Mikron HEM 500U with its newly developed rotary tilting table is convincing with competitive performance in terms of rigidity and versatility in its class. It is the ergonomic answer to the standard production of precision parts in prototyping and single parts to small batch series productions.

5-side machining offers considerable advantages for large and small components. By means of 5-side technology it is possible to machine a wide variety of shapes and surfaces in one chucking.

  • Rotary tilting table available as pallet version:
    System 3R (Dynafix) or Erowa (UPC)

  • Rotary tilting table available as generously dimensioned table top version ø 19.65 in (500 mm) with parallel T-slots)

  • Cartesian (rectangular) alignment of the axes - results in coherent tool/workpiece movement during the milling process

  • Direct measuring on the B and C-axis





  • Ideal booster for 3-axis application requiring higher productivity (3+2)

  • Easiest step up into 5-axis applications with fast ROI

  • Highly configurable to fit the application

  • Standard solution with above average benefits (reliability and productivity)




Main specifications
Travel X, Y, Z
500 x 450 x 400 mm
Swiveling axis tilting axis
-65 /+110 / nx360 °
Working Spindle (40% ED, S6)
12000 (ISO / BT-40) / 20 / 97 rpm / kW / Nm
Feed rate / rapid traverse X, Y, Z
30 m / min
Feed rate / rapid traverse (swiveling, rotating)
17 / 28 (Gearbox) | 32 / 112 (Linear) rpm
Clamping surface / Max. load
Ø 500 / 3-Axis 300, 5-Axis 200 / mm / kg
Tool magazine (incl. pallet)
30 / 60 (ISO/BT-CAT 40) | 60 (HSK-A63) piece
Automation pallet size number   mm piece
UPC (320 x 320), Dynafix (350 x 350)/7
MTS, Delphine (400 x 400) / 5 mm / piece
Automation - Max. load (incl. pallet)
200 kg
Control unit - Heidenhain / Fanuc
iTNC 530 HSCI FS / 0i-MD
